آلة تعبئة علب الشيشة بسرعة 80-120 جزء في الدقيقة
آلة تعبئة علب الشيشة بسرعة 80-120 جزء في الدقيقة
An advanced automatic cartoning machine specially designed for shisha tobacco. Easy to maintain, powerful and fast.
Features:
◆ Customized for shisha tobacco
◆ The enlarged box warehouse can accommodate up to 600 cartons.
◆ Three-rotation suction system, the suction box is more stable
◆ Servo feeding system, more intelligent
◆ Whole food grade product contact surface
◆ The speed can reach up to 120ppm
| Machine model JCZ-120C | ||
|---|---|---|
| Encasing Speed | 100-120 boxes/min | |
| Box | Quality requirement | 250-350g/㎡ based on carton size |
| Dimension | Customized | |
| Compressed air | Working pressure | 0.6-0.8mpa |
| Air consumption | 20m³/h | |
| Power supply | 220V/380V 50HZ | |
| Total power | 1.5kw | |
| Overall dimension（L×W×H) | 3700㎜×1500㎜×1900㎜ | |
| Machine weight | 1500kg | |

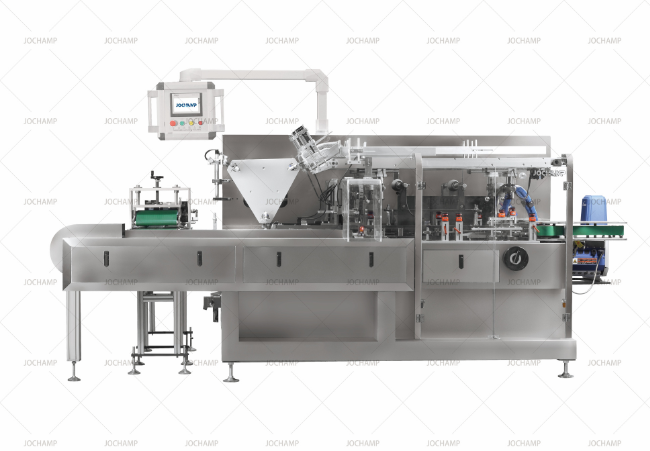

Shishapack 80-120 PPM Shisha Cartoning Machine
Shishapack 80-120 PPM Shisha Cartoning Machine is a high-speed automatic cartoning solution specially developed for shisha tobacco products. Designed according to the unique packaging requirements of shisha tobacco, it delivers stable, efficient, and intelligent performance with a maximum speed of 120 boxes per minute, ensuring accurate and continuous cartoning for various production needs.
Equipped with an intelligent servo feeding system and a three-rotation suction box system, this machine provides smoother carton handling and more reliable packaging operations. The enlarged carton magazine can hold up to 600 cartons, reducing the frequency of manual replenishment and improving production efficiency. With food-grade contact parts and a user-friendly maintenance design, the machine is an ideal choice for automated shisha tobacco packaging lines.
Working Process of Shishapack 80-120 PPM Shisha Cartoning Machine
The 80-120 PPM Shisha Cartoning Machine utilizes an automatic and continuous process of packaging that includes the process of loading products, forming cartons, filling products into cartons, and finally discharging finished cartons. The good structural design and control system ensure the smooth operation of the machine for high-volume shisha tobacco packaging production.

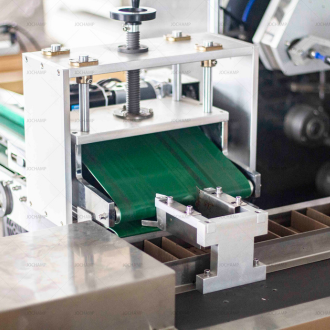

The shisha tobacco products are automatically transferred into the cartoning section through the servo feeding system. The feeding speed and position are precisely controlled to maintain stable product handling and reduce manual intervention during continuous production.

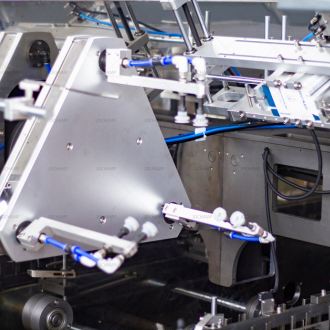

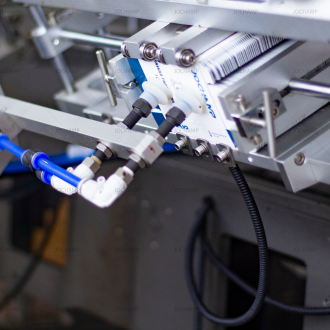

The80-120 PPM Shisha Cartoning Machine uses a three-rotation suction box system to pick up cartons accurately and complete the carton forming process. The stable carton handling mechanism helps ensure smooth operation, even under high-speed production conditions.
After carton preparation, the products are accurately pushed into the formed cartons. The automated loading process improves packaging consistency and ensures each box is properly filled before moving to the next stage.
Once the products are loaded, the cartons are automatically closed and discharged as finished packages. The complete automatic cartoning process can achieve a speed making it suitable for efficient and continuous shisha tobacco packaging lines.
Why You Need the 80-120 PPM Shisha Cartoning Machine?
As the demand for efficient and reliable shisha tobacco production continues to grow, traditional manual packaging methods may struggle to meet the requirements of high-volume manufacturing. Shishapack 80-120 PPM Shisha Cartoning Machine provides an automated packaging solution that improves production efficiency while maintaining stable and consistent cartoning performance, helping manufacturers achieve continuous and standardized packaging operations.
Higher Production Efficiency
Shisha tobacco products require a stable packaging process to handle increasing production demands. With a maximum speed of 120 boxes per minute, this high-speed cartoning machine helps increase output, reduce production delays, and support large-volume orders with continuous automatic operation.
Stable Packaging Quality
Manual packaging can be affected by operator experience and working speed. The 80-120 PPM Shisha Cartoning Machine uses an intelligent servo feeding system and precise control mechanisms to ensure smooth product transfer, accurate carton loading, and consistent packaging results throughout the production process.
Reduced Labor Cost
By automating repetitive packaging tasks, the machine reduces dependence on manual operations and improves overall workflow efficiency. The enlarged carton magazine, which can hold up to 600 cartons, also minimizes the need for frequent carton replenishment and supports longer periods of uninterrupted production.
Meet Hygiene Standards
The product contact parts of the machine are made from food-grade materials to support clean and safe packaging operations. With a user-friendly structure and easy maintenance design, the equipment helps manufacturers maintain reliable performance for long-term shisha tobacco packaging applications.
Customization Process
Shishapack provides customized solutions for different shisha tobacco packaging requirements. Based on product specifications, carton sizes, and production needs, we develop reliable 80-120 PPM Shisha Cartoning Machine solutions to support efficient and stable packaging operations.
Requirement Analysis & Solution Confirmation
We start off by gaining an insight into the customer’s products, packaging design, carton sizes, production speed specifications, and plant environment. Based on effective communication, we determine the appropriate configuration of the machinery that can be used in shisha tobacco packaging.
Product Testing & Machine Design
Based on product samples and packaging requirements, our engineers analyze the feeding method, carton structure, and loading process to design the appropriate machine layout. Key components are optimized to ensure accurate product handling and reliable performance during continuous operation.
Machine Manufacturing & Function Testing
After the design is approved, Shishapack proceeds with machine manufacturing, assembly, and system adjustment. Each main unit, including the servo feeding system, carton suction system, and cartoning mechanism, is carefully tested to ensure the 80-120 PPM Shisha Cartoning Machine meets the expected operating requirements.
Final Inspection & Technical Support
Before delivery, the equipment undergoes complete operation testing, including packaging speed, stability, and continuous running performance. After confirming that the machine meets customer requirements, Shishapack provides installation guidance and technical support to help customers quickly start production.
التعليمات
What products can the 80-120 PPM Shisha Cartoning Machine handle?
Shishapack 80-120 PPM Shisha Cartoning Machine is specially designed for shisha tobacco products and can automatically carton different product sizes and packaging formats.
Is the 80-120 PPM Shisha Cartoning Machine easy to maintain?
The cartoning machine features a practical structure that makes daily operation, inspection, and maintenance more convenient. Key components are designed for stable performance, while the product contact parts are made of food-grade materials to support clean and safe packaging operations.
How does the machine ensure stable cartoning performance during operation?
The 80-120 PPM Shisha Cartoning Machine is equipped with an intelligent servo feeding system and a three-rotation suction box system, which precisely controls product transfer and carton handling. During high-speed operation, the automatic cartoning machine maintains smooth feeding and accurate carton loading, helping reduce carton jams and packaging errors.
What support does Shishapack provide after purchasing the machine?
Before delivery, Shishapack carries out complete machine testing to ensure the equipment meets customer requirements. We also provide installation guidance and technical support to help customers complete commissioning smoothly and quickly start their shisha tobacco packaging production.
