Feeding Elevator For Shisha
Safely and efficiently transport raw and part-processed tobacco leaves along your production line with bucket and belt feeding elevators from Shishapack.
Feeding Elevator Features
We offer standard bucket and belt-type feeding elevators as well as 100% custom solutions. Our skilled team of machine designers can create a unique solution that perfectly integrates into your production line.
◆ Capacity: From 100 to 500 KG/hour
◆ Motor Power: 5 kW to 5 kW
◆ Discharge Height: From 1 to 4 meters
◆ Construction: Stainless steel (frame, hopper, buckets), synthetic belt
◆ Dimensions: 1200mm (L) x 800mm (W) x 3000mm (H)
◆ Conveyor Speed: Adjustable via PLC

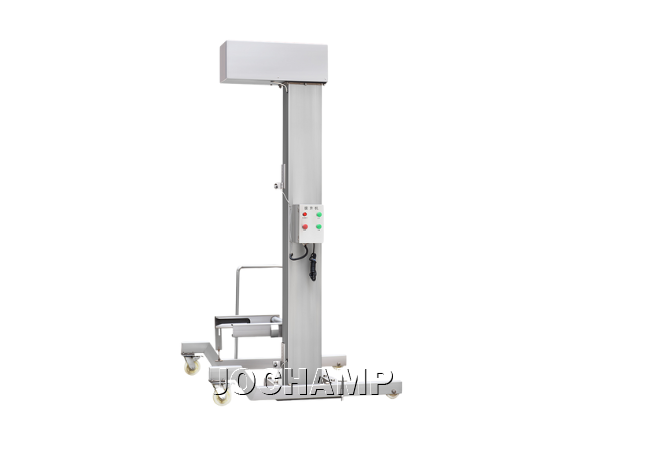

What Is A Feeding Elevator?
While a feeding elevator is often a component of a machine, it’s also a stand-alone piece of equipment. A feed elevator lifts and transports shisha tobacco between parts of a processing line using a mechanical conveyor system. For example, it may transport tobacco leaves from storage bins up into a cutting machine, or shredded tobacco from a container to a mixing machine.
The elevator typically consists of a bucket or belt system, made from food-grade materials. This helps to efficiently move the product while preventing contamination or damage to the delicate tobacco leaves.
Feeding Elevator Parts
Our Shishapack feeding elevators consist of key components each with a unique function that can be customized to meet your needs.
Safety Features
Emergency Stop
In case of malfunction, the operator can use the emergency stop button to instantly halt movement.
Safety Guards
These shields provide a barrier between your workers and moving machinery parts to prevent injury.
Overload Sensors
Smart sensors shut down the machine if there’s too much tobacco passing through, preventing damage.
CE Certification
All our elevators are engineered and assembled according to stringent EU safety standards.

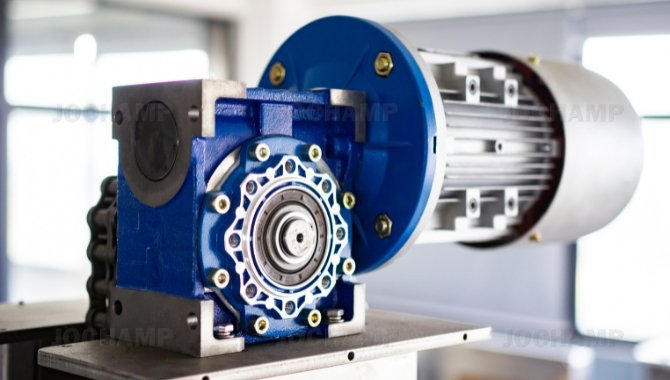

Optional Features
We can customize your feeding elevator to best suit your production line and machinery. For example, we can add a vibration mechanism or safety sensors at the discharge point to for a controlled release. This prevents clogging and ensures the tobacco is evenly distributed into the next machine.
Choose Shishapack: Shisha Specialists
At Shishpack, all of our machines are designed to process shisha tobacco specifically. When you buy machines from us, you know they’ve been tested for maximum efficacy to suit the unique characteristics of shisha tobacco. This reduces your risk of machine malfunctions causing downtime or inferior quality products.
Types Of Feeding Elevators
Bucket System

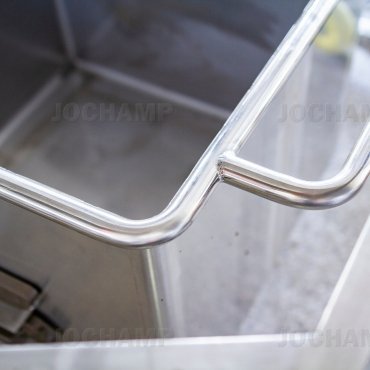

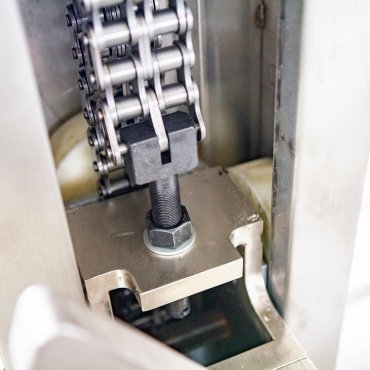

Our bucket-style feeding elevators feature small containers, or buckets, attached to a belt or chain. As the belt moves, the buckets scoop the tobacco and lift it vertically or at a pitched angle.
The buckets are made from food-grade materials, like stainless steel or plastic. This is to avoid chemical reactions with the tobacco while ensuring maximum hygiene

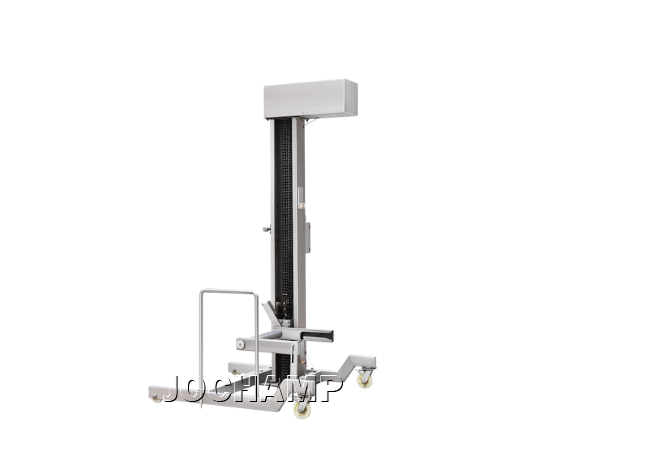

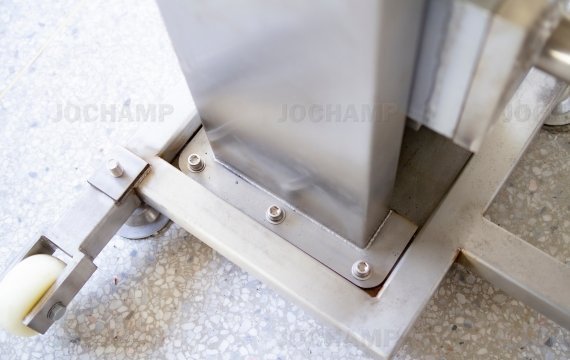

Belt System
Our belt-style feeding elevators feature a continuous inclined belt system. The belt is made from food-grade rubber which gently lifts the tobacco without crushing it.
Our belt elevators can run at higher speeds and, generally speaking, require less maintenance than a bucket system as washdowns are easier and there are fewer moving parts.
| Model | JCT-500 |
|---|---|
| Maximum load | 500KG |
| Lift height | 1900MM |
| Dimensions | 1600*1400*2800MM |
| Power | 1.5KW |
